JUPITER+ - Low & medium voltage dead cables identifier

Identify low and medium voltage dead cables and feeders

JUPITER+ allows :

  • Identification of de-energized cables
  • Identify phases in short-circuit mode and open circuit mode
  • Continuity in short circuit mode and open circuit mode
  • Low voltage and medium voltage de-energized cables and feeders identifier
  • De-energized three phase cable identifier and phaser.
  • Dead low or medium voltage cable identifier

USE PRINCIPLE

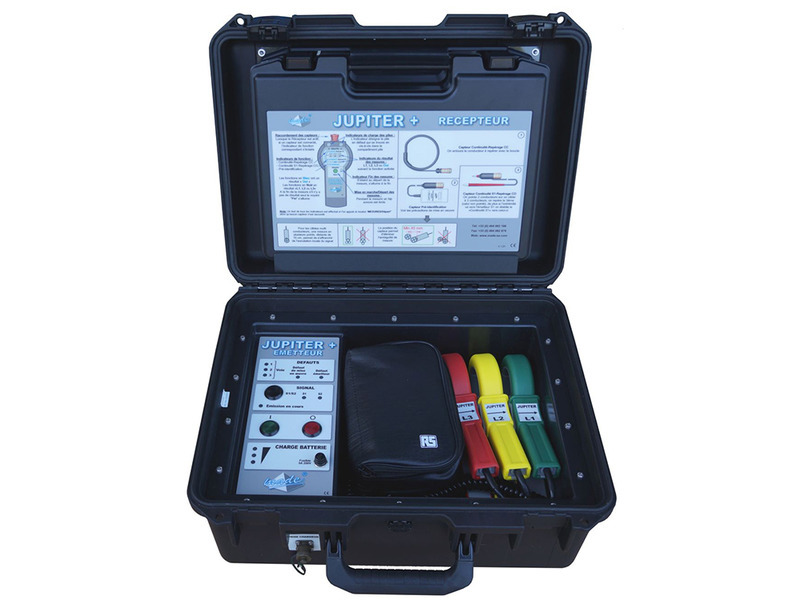

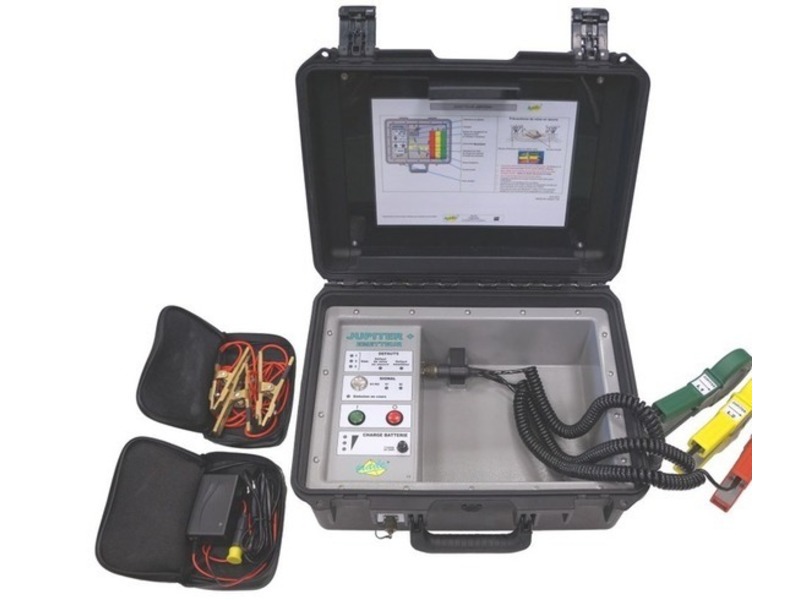

JUPITER+ consists of a transmitter and a Receiver, both can be used on the electric network, de-energized and earthed. The transmitter must be connected in a substation, on a MV cell or a LV feeder, using the 3 current clamps connected to each phase, excluding the outer sheath. The receiver allows cable pre-identifying, continuity checking and phase identifying in open circuit or short circuit modes.

DOWNLOAD

pdf Data sheet [08/06/2021 15:08] 1060 Ko.
pdf User guide [23/03/2023 08:18] 1540 Ko.




Categories : Products, Electric operating, Cable and phase identication system
