PinPointR - Ground Penetrating Radar Utility Locator (GPR)

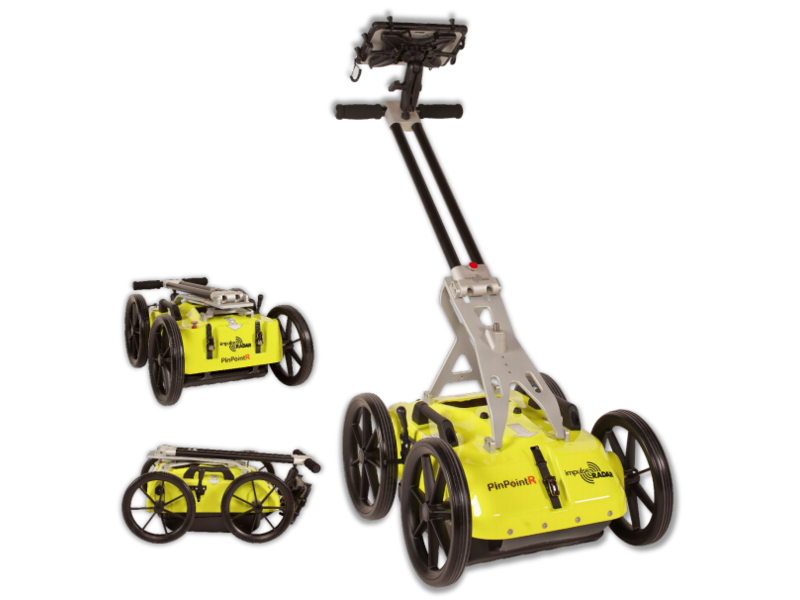

The PinPointR is a GPR utility locator instrument.

This radar has been developed to maximize in-field productivity by utilizing ImpulseRadar’s innovative real-time sampling (RTS) dual-channel antenna technology, which provides incredible bandwidth, speed, and resolution, all controlled via an intuitive Android-driven user interface.

The ImpulseRadar Advantage :

The ImpulseRadar PinPointR offers a clear and dependable way to quickly and easily locate, avoid or map underground utilities with the functionality required to meet approved industry standards, whilst offering market-leading performance and data quality.

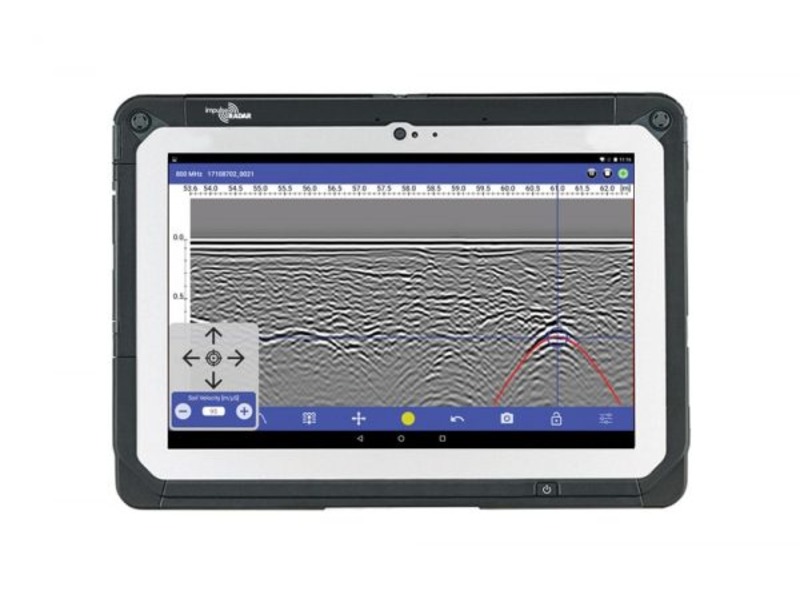

The Android data acquisition App includes industry standard marker functionality (APWA, AS5488, or user-defined) to enable users to mark-up data in the field to correlate with the actual paint marks they put on the ground and any subsequent field sketches or report outputs.

Features :

  • Light weight compact design (less than 20kg)
  • Dual Channel Dual Frequency 800 & 400 MHz
  • Foldable frame for ease of transport
  • Lithium Ion Battery for 7 hour continuous use
  • Android based acquisition software
  • High performance Ground Penetrating radar
  • Extremely easy to use interface
  • Post processing software available

VIDEO

PinPointR

DOWNLOAD

pdf Data sheet [30/01/2020 10:49] 765 Ko.
